Kverneland 5087
Segadora acondicionadora de mariposa para mayor capacidad de trabajo
Segadora acondicionadora de mariposa con acondicionador SemiSwing
Destacado
Low weight design, power requirements from 150hp Integrated vertical parking stand Hydraulic adjustment of ground pressure (optional) NonStop BreakBack Centre suspended mowing unitsDescripción

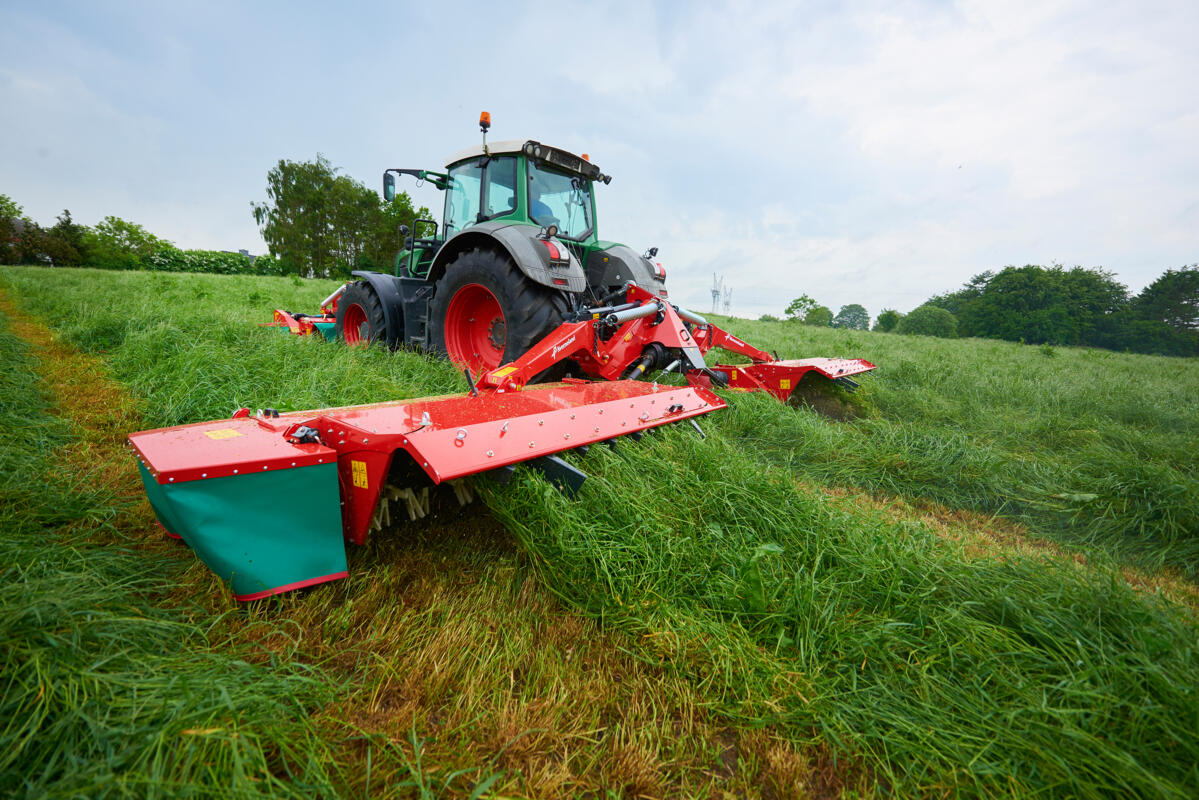

La Kverneland 5087 MT, con una anchura de trabajo de 8,75 m, está equipada con mayales SemiSwing. Se trata de una segadora acondicionadora mariposa diseñada para reducir los costes de explotación en términos de potencia y consumo de combustible, con requisitos de potencia a partir de sólo 150 CV. Viene de serie con un pie de estacionamiento integrado para un aparcamiento fácil y cómodo, que requiere un espacio mínimo durante el almacenamiento fuera de la temporada de siega. La máquina está disponible opcionalmente con ajuste hidráulico de la presión al suelo.
Características
This feature provides easy and simple setting of the ground pressure. For greater operator comfort, ground pressure of the large suspension spring is set hydraulically from the tractor cab. On the hydraulic version the tension on the large suspension spring, which controls the ground pressure, is adjusted hydraulically, to increase or lower pressure. The chosen ground pressure level is conveniently registered from the easy-to-read scale
Vertical Transport Position

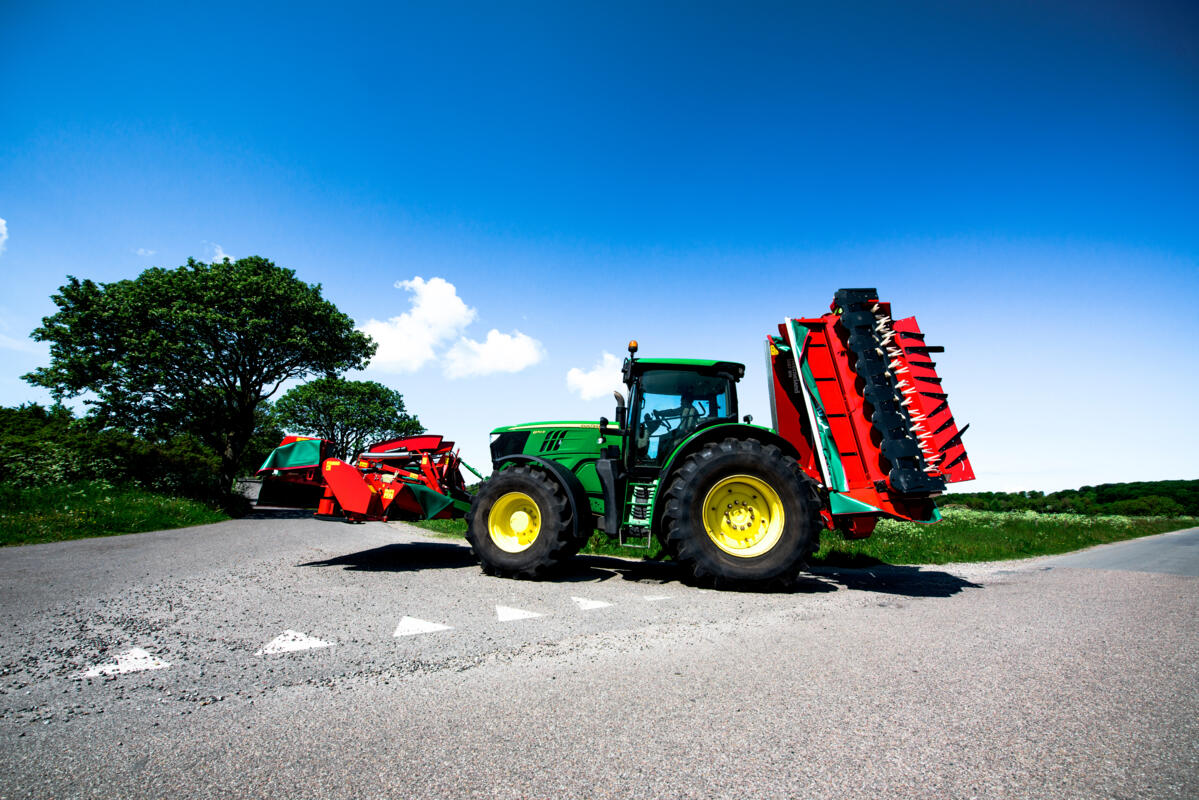

For transport the mower folds into a compact position well behind the tractor. The folding design ensures that the weight is distributed evenly, with the weight of the mower close to the tractor. Transport height is well below 4.00m.
Parking, Safe and Sure-Footed
With the integrated parking device, storage of the machine is made easy and convenient, requiring a minimum of space during winter storage. The mower is firmly parked on strong and stable parking foot, bringing total height below 4.00m.
Accurate and Simple Suspension
The Kverneland 5087 MN is fitted with a highly efficient suspension system that includes centre suspended mowing units, efficient spring suspension and NonStop BreakBack. The mowing units are centre suspended via a suspension spring, to give an even weight distribution across the complete mower width. The benefit is less skid wear, optimum protection of the stubble and less fuel consumption.
Two Mounting Options

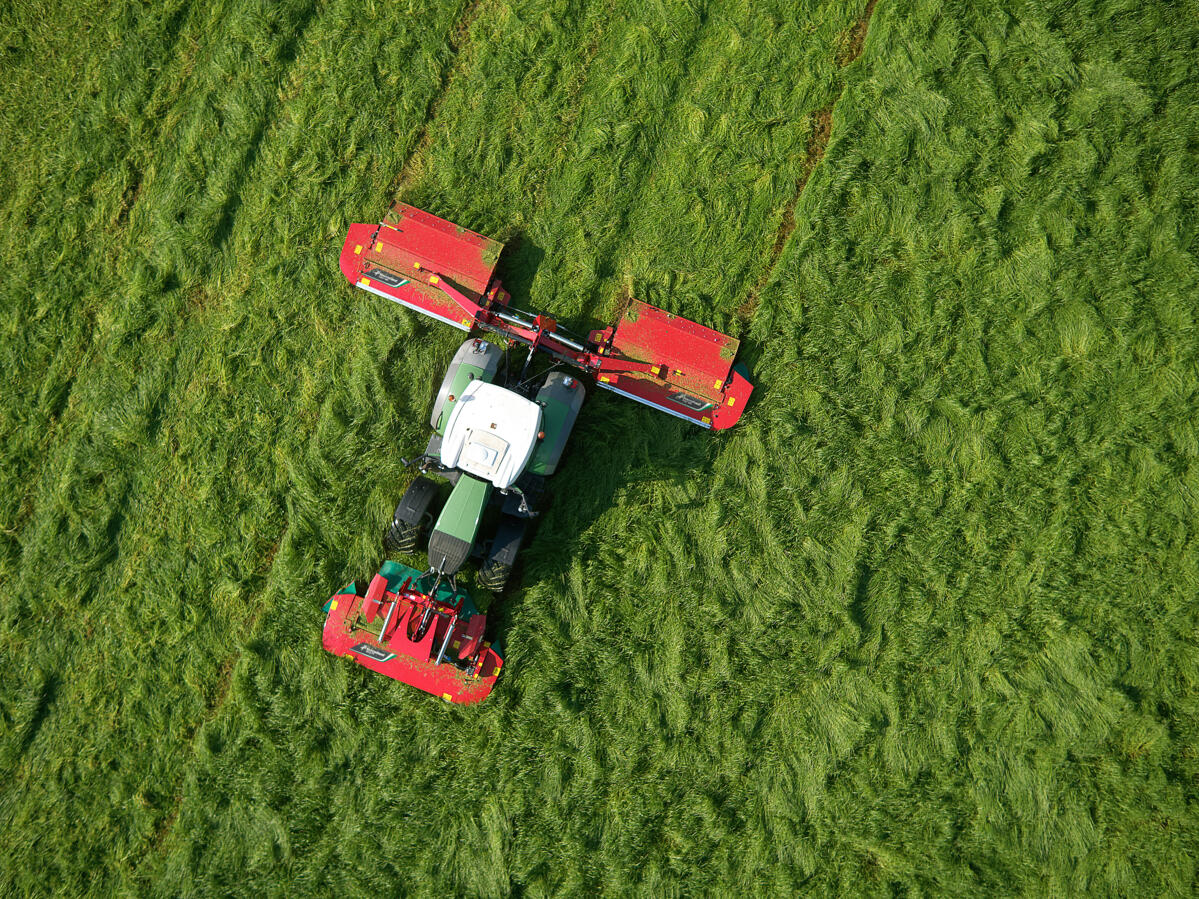

Kverneland 5087 MN can be adjusted for optimal operation according to different circumstances, such as field contours or working width of the front mounted mower. To ensure optimal overlap between front and rear units, the mowing units can be mounted in two positions on the suspension arm.
Protection of the Cutterbar
Kverneland 5087 MN series is all fitted with the NonStop BreakBack system to protect the cutterbar. The integrated NonStop BreakBack autoreset system will protect the cutterbar from foreign obstacles. If an obstacle is hit in the field the mowing unit will swing backwards and up. This gives maximum protection of the cutterbar.
Effortless Protection
There is no need to stop - or even to reverse the tractor to get the mowing unit into working position again. When engaged the spring loaded design ensures that the NonStop BreakBack system automatically returns the cutting unit to its´ original working position.
- Due to the nylon tines fitted to the conditioner, the total weight of the machine is kept to a minimum, while keeping an aggressive conditioning.
- The fixed conditioning fingers are made from high quality nylon, to make them very rigid.
- This means excellent protection from stones and other obstacles. A perfect solution for farmer and smaller contractor machines!
Características técnicas
Características técnicas
Descargar catálogo| Modelo | 5087 MT | |
|---|---|---|
| Acondicionador | SemiSwing | |
| Ancho de trabajo (m) | 8.75 | |
| Ancho de circulación (m) | 3.00 | |
| TDF (rpm) | 1000 | |
| Potencia mín. necesaria (cv) | 150 | |
| Número de discos/cuchillas | 2x8/2x16 |
Características técnicas
Características técnicas
Descargar catálogoWorking Width |
No. of Discs |
Conditioner |
Power Requirements |
|
5087 MT/MN |
8.70m |
2 x 8 round discs |
SemiSwing/Nylon tine conditioner |
100kW/150hp |
