Kverneland iXtrack T6

Pulverice sólo cuando sea necesario

Aumente la protección del medio ambiente pulverizando sólo cuando sea necesario con la nueva aplicación SpotSpray del software iXspray en el terminal IsoMatch Tellus en combinación con el pulverizador Kverneland.

Protección óptima de los cultivos

La aplicación SpotSpray se basa en un mapa de prescripción predefinido con dosis de aplicación cero. Estos mapas de prescripción pueden realizarse de forma similar a los mapas de prescripción de Aplicación de Dosis Variable (VRA), en combinación la aplicación SpotSpray el pulverizador se enciende y se apaga. Esto se hace basándose en las secciones predefinidas en el terminal de control e incluso puede hacerse con válvulas de sección normales en el pulverizador. Sólo se pulverizan los puntos designados, lo que resulta especialmente útil cuando se trata de puntos de malas hierbas, cardos, zonas húmedas, zonas no germinadas y zonas con problemas de suelo.

Otra ventaja es que, basándose en la superficie de los puntos en el mapa VRA, es fácil ver exactamente cuánto líquido de pulverización se necesita en el pulverizador. También aumenta la capacidad, ya que se pueden cubrir más hectáreas o campos con un solo depósito de caldo de pulverización.

Con una inversión relativamente pequeña en la licencia SpotSpray del terminal IsoMatch Tellus, el retorno de la inversión es elevado, debido al ahorro de tiempo y dinero. Con ello, la pulverización puntual se hace accesible a todos los agricultores y contratistas.

Con SpotSpray pueden ahorrarse costes al reducirse el caldo de pulverización que debe utilizarse y preservar los cultivos sanos de tratamientos innecesarios. Esto también significa menos daños a los cultivos.

La serie iXtrack T es 100% compatible con ISOBUS de serie, lo que significa que es fácil de conectar y usar con IsoMatch Tellus GO+ o PRO o cualquier otro terminal certificado por AEF. El innovador hardware y software iXspray con interfaz táctil intuitiva garantiza un manejo sencillo del pulverizador. iXspray está repleto de funciones que facilitan la vida del operador, ahorran tiempo y evitan errores en una temporada de trabajo ajetreada, por ejemplo, los preajustes para los trabajos de pulverización y la configuración de la barra pueden configurarse fácilmente.

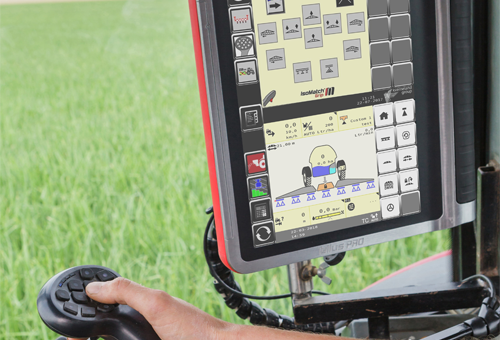

IsoMatch Grip

El joystick IsoMatch Grip le ofrece el control del pulverizador con mayor comodidad. El operador puede programar libremente desde 1 hasta 44 funciones en 4 modos. De este modo, puede empezar con las funciones básicas e ir añadiendo otras más adelante según sus necesidades. Gracias a la funcionalidad ISOBUS AUX-N, el IsoMatch Grip también puede utilizarse para controlar otros aperos.

IsoMatch GEOCONTROL

La combinación de IsoMatch GEOCONTROL y GPS permite al operador reducir los solapamientos y las sobredosificaciones, aumentar la calidad de los cultivos y ahorrar costes. Todo ello incluso con dosis elevadas, ya que no afecta a la longitud de la sección, no hay pérdida de presión ni flujo desigual entre secciones. La aplicación IsoMatch GEOCONTROL satisface la necesidad de una agricultura fácil, inteligente y eficaz, al permitir el uso del control automático de secciones y aplicaciones de dosis variable.

Armario de almacenamiento

En el lado izquierdo, detrás de la puerta, hay un compartimento de almacenamiento integrado que le permite guardar su equipo o herramientas de seguridad y limpieza en el pulverizador. Hay disponible un armario de almacenamiento adicional en el lado derecho para crear aún más espacio de almacenamiento.

Filtros de fácil acceso

La cubeta transparente del filtro permite ver directamente el grado de suciedad del filtro de aspiración sin necesidad de desmontarlo. Una válvula en la parte inferior permite vaciar el contenido del filtro antes de retirar la cubeta para evitar la contaminación con productos químicos. El filtro de presión autolimpiante evita la obstrucción mediante un flujo continuo que mantiene limpia la malla del filtro. Las partículas no disueltas se devuelven al depósito hasta su completa dispersión.

Depósito de agua limpia

El depósito de agua limpia está equipado con un indicador de nivel. Puede llenarse a través de la abertura del depósito de agua limpia. Contiene suficiente agua limpia para una limpieza a fondo con las diversas funciones iXclean.

Incorporador de productos químicos

El incorporador de productos es una parte integrada del diseño del depósito. Está situado junto al panel de válvulas para facilitar el acceso. Equipado con un sistema de enjuague circular y una tapa , puede enjuagarse de forma segura con la tapa cerrada. Grandes cantidades de polvo y mezclas difíciles se inyectan sin problemas en cuestión de segundos.

Llenado a través de la manguera de aspiración

El agua aspirada de una fuente externa se filtra primero por el filtro de la manguera y después por el filtro de aspiración. Paralelamente, ya puede utilizar el incorporador de productos para añadir y premezclar los productos químicos.

Grifo lavamanos

Puede lavarse las manos a través del grifo lavamanos situado en el centro del panel de válvulas.

Lavado externo

Se puede conectar un kit de limpieza con una manguera de 15 metros y un cepillo al lado de presión de la bomba. Permite la limpieza previa del pulverizador en el campo, utilizando agua del depósito de agua limpia.

Sistema de doble agitación

El sistema de agitación de flujo de retorno mantiene la mezcla homogénea durante el funcionamiento y puede desconectarse fácilmente en caso de riesgo de formación de espuma o de depósito casi vacío. La potente agitación de alta presión con boquillas inyectoras garantiza una mezcla potente que puede activarse tras el llenado o una pausa prolongada.

iXclean

El cebado y aclarado ENFO es estándar en todos los ordenadores de pulverización Kverneland. Antes de iniciar la pulverización, los conductos de pulverización se llenan de productos químicos exactamente hasta la boquilla mediante cierre automático. Tras el acabado o la interrupción, los productos fitosanitarios se enjuagan automáticamente fuera de los conductos de pulverización con un consumo mínimo de agua limpia. Esta tecnología ENFO optimiza el llenado y la limpieza de los conductos de pulverización. La aplicación precisa, el no desperdicio de productos y el ahorro de agua son las ventajas para el medio ambiente.

iXclean Comfort

iXclean Comfort es un sistema semiautomático de control de válvulas. La combinación de un indicador de nivel eléctrico y una válvula de aspiración proporciona comodidad y precisión al operador; el llenado automático se detiene cuando se alcanza el nivel programado, y el control remoto de todas las funciones de enjuague y cebado de ENFO se realiza desde la cabina. Simplemente cebe los conductos de pulverización antes de empezar y aclárelos después.

iXclean Pro

iXclean Pro es una solución avanzada con gestión eléctrica de válvulas totalmente automática. Esto significa que todas las funciones se pueden controlar desde la cabina. Cambiar entre llenado, agitación, pulverización, dilución, cebado, aclarado y limpieza del depósito es extremadamente fácil: ¡sólo tiene que pulsar el botón! Además, iXclean Pro ofrece también un programa de limpieza y aclarado multietapa totalmente automático con dilución triple para todo el pulverizador. Pulsando un botón se inicia un proceso de limpieza exhaustivo que incluye todas las líneas. Es tan minucioso que los niveles de residuos tras la limpieza automática son inferiores al 1%.

iXflow-E

iXflow-E es el sistema de recirculación de alta presión con control eléctrico de boquillas. Los productos químicos circulan libremente y el caldo de pulverización vuelve al depósito cuando se detiene la pulverización. Esto significa que no hay sedimentación en los conductos de pulverización ni puntos muertos para la pulverización o la limpieza, incluso cuando la barra está en posición vertical. Durante la pulverización, cada sección recibe presión de ambos extremos de los conductos de pulverización, por lo que el operador puede empezar a pulverizar inmediatamente sin ninguna caída de presión. El operador puede programar fácilmente el número y el tamaño de las secciones que mejor se adapten a sus necesidades y a la situación del campo.

Máximas posibilidades de dirección

El iXtrack T6 ofrece la máxima facilidad de uso y comodidad al disponer de un eje direccional que contribuye a una excelente estabilidad en diferentes condiciones de campo. El ancho de vía puede variar de 1,80 a 2,25 metros. Esto garantiza las máximas posibilidades de dirección con un radio de giro reducido.

Suave y suspendido

La serie iXtrack T está equipada con un paralelogramo suave y suspendido que está activo tanto en el campo como en el transporte. El paralelogramo combina una estabilidad óptima con un equilibrado suave de la barra y un movimiento vertical limitado para minimizar las desviaciones de la altura de pulverización, asegurando una cobertura correcta del cultivo.

Sistema de gestión de cabeceras ErgoDrive

El sistema de gestión de cabeceras ErgoDrive forma parte del equipamiento de serie del iXtrack T6. ErgoDrive asiste al operador en los giros en cabecera. Se activa simplemente conectándolo o desconectándolo y ErgoDrive controla todas las acciones necesarias, mientras el operador puede centrarse en conducir con seguridad.

La barra de pulverización HSS combina un peso mínimo con la máxima resistencia y estabilidad. El acero especial Domex endurecido confiere a la barra de pulverización una reputación duradera de alta calidad y resistencia. La unión de aluminio en lugar de la soldadura de la gama de barras de pulverización HSA proporciona un ahorro de peso y una resistencia notable.

Barra de pulverización HSA

La barra de pulverización de aluminio HSA ofrece una protección eficaz de los portaboquillas dentro del perfil inferior. Este perfil está diseñado para facilitar la limpieza. Al no tener ángulos agudos, no pueden quedar atrapados líquidos ni residuos. La superficie anodizada protege contra la corrosión y los arañazos.

Barra de pulverización HSS

La barra de pulverización HSS está diseñada para uso profesional. La construcción triangular proporciona una integración perfecta de los conductos de pulverización, boquillas y portaboquillas de acero inoxidable, así como un tendido óptimo de la manguera, donde todo queda bien protegido. ¡Las anchuras de trabajo de 18 a 40 metros con una variación en diferentes longitudes de sección ofrecen el pulverizador adaptado a las demandas del cliente!

Compacta y estable

En posición de transporte, las barras de pulverización HSA y HSS se pliegan perfectamente sobre el diseño patentado del depósito y lejos de la cabina del tractor. El resultado es una anchura de transporte de 2,55 m y una altura inferior a 4 m que, junto con el bajo punto de gravedad, proporciona una excelente estabilidad tanto en carretera como en el campo.

Su pulverizador, siempre conectado con Kverneland Sync
Kverneland Sync garantiza que su pulverizador ISOBUS permanezca totalmente conectado, lo que facilita la transferencia continua de datos al IsoMatch FarmCentre y al Kverneland ServiceCentre. Sync permite la supervisión en tiempo real, la gestión eficiente de las tareas y el diagnóstico remoto, lo que permite a los técnicos analizar y resolver rápidamente los problemas electrónicos, minimizando el tiempo de inactividad y manteniendo la consistencia de la aplicación.

Gestión optimizada de tareas y documentación de campo
Con Kverneland Sync, los usuarios tienen acceso sin interrupciones a los datos clave de pulverización a través de IsoMatch FarmCentre, que admite documentación completa de tareas, seguimiento de aplicaciones y métricas de rendimiento detalladas. Esta conectividad ayuda en la planificación, la elaboración de informes y el mantenimiento preciso de registros, lo que permite a los usuarios ver las dosis de pulverización, los patrones y la cobertura del campo para mejorar la gestión del mismo.

Seguridad y conectividad mejoradas
Kverneland Sync también ofrece funciones de geolocalización con seguimiento de la ubicación en tiempo real. El acumulador Sync garantiza la trazabilidad continua, incluso cuando el pulverizador está desconectado del tractor. Kverneland Sync e IsoMatch FarmCentre crean una solución integrada que optimiza la eficiencia y garantiza la trazabilidad. Al recopilar datos del pulverizador, podemos analizar las mejores condiciones de pulverización y mejorar la precisión y la eficiencia de la siguiente operación de pulverización.

The HSS spray boom combines a minimum of weight with maximum strength and stability. Special hardened Domex steel gives the spray boom a long lasting heavy duty high quality reputation. The aluminium bonding instead of welding of the HSA spray boom range provides a weight saving and gives remarkable strength.

HSS Spray Boom
The HSS spray boom is designed for professional use. The triangular construction provides perfect integration of the stainless steel spray lines, nozzles and nozzle holders and the optimal hose routing where all is well protected. Working widths from 18 up to 40 metres with a variation in different section lengths offer the sprayer adapted to customer demands!

HSA Spray Boom
The HSA spray boom offers efficient protection of the nozzle holders within the bottom profile. This profile is designed for easy cleaning and much more. With no sharp angles, no liquid and residues can be trapped. The anodised surface protects against corrosion and scratches.

Compact and Stable
In transport position the HSA and HSS spray boom fold away nicely over the patented tank design and far away from the tractor cab. This results in a transport width of 2.55m and a height below 4m that together with the low gravity point provides excellent stability on the road, as well in the field.

The iXtrack T series are 100% ISOBUS compatible as standard, which means easy plug and play with the IsoMatch Tellus GO+ or PRO or any other AEF certified terminal. The innovative iXspray hardware and software with intuitive touch interface guarantees an user friendly operation of the sprayer. iXspray is full of nice features to make the operators life easy, save time and avoid mistakes in a busy working season, for example pre-sets for spray jobs and boom configuration can be configured easily.

IsoMatch Grip
The IsoMatch Grip adds control to your fingertips for easy control of the sprayer. From 1 up to 44 functions over 4 modes can be programmed freely by the operator. So you can start with basic functionalities and add other functionalities later on demand. Due to the ISOBUS AUX-N functionality the IsoMatch Grip can also be used to control other implements.

IsoMatch GEOCONTROL
The combination of IsoMatch GEOCONTROL and GPS allows the operator to reduce overlap and over dosing, to increase crop quality and save costs. All this in combination with even high flow rates, because there is no impact on the section length, no loss of pressure or an unequal flow between sections. IsoMatch GEOCONTROL application fulfils the need in terms of easy, smart and efficient farming, by providing the use of automatic section control and variable rate applications.

Easy hitching
The iXtrack T6 is available in combination with a low linkage.

Maximum Steering Possibilities
The iXtrack T6 offers maximum user friendliness and comfort by having a steering axle which contributes to excellent stability in different field conditions. The track width can be changed from 1.80m to 2.25 metres. This ensures maximum steering possibilities with a tight turning radius.

Smooth and Suspended
The iXtrack T series is equipped with a smooth, suspended parallogram that is active when in the field and in transport. The parallelogram combines optimal stability with soft boom balancing and limited vertical movement to minimise spray height deviations, securing correct crop coverage.

ErgoDrive Headland Management System
ErgoDrive headland management is standard equipment for the iXtrack T6. ErgoDrive assists the operator on the headland turns. It is activated by simply switching ON or OFF and ErgoDrive controls all the necessary actions, while the operator can focus on driving safely.

iXclean
ENFO priming and rinsing is standard on all Kverneland spray computers. Before spraying starts the spray lines are filled with chemicals exactly up to the nozzle by automatic shut off. After finishing or interruption, crop protection agents are automatically flushed out of the spray lines with a minimum of clean water consumption. This ENFO technology optimizes filling and cleaning of the spray lines. Accurate application, no waste of products and saving water are the benefit for the environment.

iXclean Comfort
iXclean Comfort is a semi-automatic valve control system. The combination of an electrical level indicator and suction valve provides operator comfort and accuracy; automatic filling stops when the programmed level is reached, and remote control of all ENFO rinising and priming functions are carried out from the cab! Simple prime the spray lines before you start and rinse them afterwards.

iXclean Pro
iXclean Pro is an advanced solution with fully automatic, electric valve management. It means all functions can be controlled from the cab. Switching between filling, agitation, spraying, diluting, priming, rinsing and tank cleaning, is extremely easy: just push the button! In addition iXclean Pro offers also a fully automatic multi-step rinsing and cleaning program with triple dilution for the entire sprayer. Pushing one button a comprehensive cleaning process including all lines will start. It is so thorough, that residue levels after automated cleaning are below 1%.

iXflow-E
iXflow-E is the high pressure recirculation system with electric nozzle control. There is a free circulation of chemicals with a return of spray liquid back to the tank as spraying stops. This means there is no sedimentation in the spray lines and no dead ends for spraying or cleaning, even when the boom is in vertical position. During spraying each section gets under pressure from both ends of the spray lines, so the operator can immediately start spraying without any pressure drop. It is easy for the operator to program the number and size of sections which fits the best to their requirements and field situations.

Boom Guide
Boom guide is an automatic boom height control system that helps the operator to maintain your chosen spraying height. Ultrasonic sensors control the sprayer's hydraulics to guide the boom.

Sensors with Hybrid Mode as standard
This unique sensor technology, provides excellent guidance in many different and challenging field conditions and crops. The hybrid mode not only measures the distance to the plant (upper growth), it also measures the distance to the ground or bottom parts of growth at the same time. There are three different modes:

• Soil mode: the sensors only see the bottom. The soil remains representative.
• Crop mode: the sensors only see the crop. In a closed crop the sensors continue to automatically follow the crop (top).
• Hybrid mode: the sensors see the crop and the soil. The sensors follow the soil surface and the crop. When the crop is uneven, a uniform crop is virtually determined. Used in unclosed or uneven crops.

The advantage is a perfect boom guidance at higher speed and a total respect of the optimal nozzle distance to the crop, which result in highest efficiency of the application and reducing drift to a minimum level.

Boom Guide ComfortActive
The two ultrasonic sensors, with integrated roll sensors on the boom, can control the spray height via the central slope correction and boom lift functions. A proportional hydraulic valve is steering the central, hydraulic slope correction cylinder. The cost-effective system is suited to gentle slopes, uneven crop conditions and lower driving speeds.

Boom Guide Pro
This advanced system uses three ultrasonic sensors to control left- an right-hand boom sections independently for the ultimatic guidance in the most challenging field conditions. It can deliver positive and negative lateral movement on each side of the boom to follow the contours in every situation!

Boom Guide ProActive
The system proactively reacts on boom movement and controls both the central and independent slope correction, as well as boom lift functions to guide the boom over the crop canopy, soil surface or a combination of both modes.

Boom Guide 5 Sensor Extension
The Boom Guide 5 sensor extension provides two additional ultrasonic sensors to ensure proper height measurements with booms reduced to 24 metres.

Balancing in Flatland Conditions
An especially designed balancing system for flatland conditions is available for HSS spray booms from 32-40 metres. This system does not require any electronic boom guidance in flatland areas. The advantage is a perfect boom guidance at higher speed and a total respect of the optimal nozzle distance to the crop, which result in highest efficiency of the application and reducing drift to a minimum level.

Storage Locker
A storage locker is integrated on the left hand side behind the door allowing you to keep your safety and cleaning equipment or tools with you on the sprayer. An additional storage locker is available for the right hand side to create even more storage place.

Easy Accessible Filters
The transparant filter bowl provides direct view on the dirt degree of the suction filter without dismounting. A valve at the bottom allows emptying the filter content before removing the bowl to avoid contamination of the hands with chemicals. The self cleaning pressure filter prevents blocking via a continuous flow keeping the filter mesh clean. The undissolved particles are returned into the tank until they are completely dispersed.

Chemical Inductor
The chemical inductor is an integrated part of the tank design. It is located next to the valve panel for easy access. Equipped with a circular rinsing system and waterproof cover, it can be rinsed safely with closed cover. Big quantities of powder and difficult mixtures are injected without any problems within seconds!

Clean Water Tank
The clean water tank is equipped with a level indicator. It can be filled via the opening on the clean water tank. It contains sufficient clean water for thorough cleaning with the several iXclean functions.

Filling via the Suction hose
External aspirate water is filtered first by the filter on the hose and then by the suction filter. In parallel you can already use the chemical inductor to add and premix chemicals.

Hand Wash Tap
You can wash your hands via the hand wash tap which is centrally located on the valve panel.

External Washing
A cleaning kit with a 15 metre hose and a brush, can be connected to the pressure side of the pump. It is allowing precleaning of the sprayer in the field, using water from the clean water tank.

Dual Agitation System
The return flow agitation system keeps the mixture homogeneous during operation and can be easily switched off in case of foam risk or nearly empty tank. The powerful high pressure agitation with injector nozzles guarantees powerful mixing which can activate after filling or a long break.

Only spray when it is needed
Increase the environmental protection by only spray when it is needed with the new SpotSpray application within the iXspray software on the IsoMatch Tellus terminal in combination with the Kverneland sprayer !

Optimal Crop Protection
The SpotSpray application is based on a predefined prescription map with zero application rates. These prescription maps can be made in a similar way as the Variable Rate Application (VRA) prescription maps, in combination the SpotSpray application the sprayer shuts on and off. This is done based on the predefined sections in the control terminal and can even be done with normal section valves on the sprayer. Only designated spots are sprayed, which is particularly helpful when targeting weed spots, thistles, wet areas, non-germinated areas and areas with soil problems.

Another benefit is that based on the area of the spots in the VRA map, it is easy to see exactly how much spray liquid is required in the sprayer. Capacity is also increased as more hectares or fields can be covered with one tank of spray liquid.

With a relatively small investment in the SpotSpray license on the IsoMatch Tellus terminal, the return on investment is high, due to saving time and money. With this, spot spraying becomes accessible for all famers and contractors.

With SpotSpray costs can be saved by reducing the spray liquid to be used and preserve healthy crop from unnecessary treatment. This also means less crop damage.

La gama completa de barras de pulverización de acero HSS de Kverneland viene de serie con separación entre boquillas de 50 cm. Ahora se pueden añadir soportes de boquillas adicionales a la barra para conseguir que la distancia entre boquillas sea de 25 cm. En algunos países, la distancia entre boquillas de 25 cm es obligatoria por ley y está confirmada como tecnología de baja deriva.

Mejora de la cobertura del tratamiento y reduce la deriva

La distancia entre boquillas de 25 cm mejorará la cobertura del tratamiento y la reducción de la deriva, ya que es posible pulverizar más cerca de la zona objetivo a una altura de pulverización de 30 cm, manteniendo una distribución precisa del líquido pulverizado al nivel correcto con el tamaño de gota adecuado.

Aumento de la ventana de pulverización

El fácil cambio de la distancia entre boquillas de 50 a 25 cm supone mayor flexibilidad durante la pulverización y permite disponer de más tiempo para pulverizar en condiciones óptimas. Además, el clima tiene menos influencia. Es fácil cambiar de una distancia entre boquillas de 50 a 25 cm o viceversa. La distancia entre boquillas de 25 cm es una variante de configuración, además de la distancia estándar de 50 cm (secciones centrales, iXflow-Air e iXflow-E). Incluso es posible su instalación a posteriori de la fabricación de la máquina, con los denominados RetroFit-Kit.

Easy hitching
The iXtrack T6 is available in combination with a low linkage.

Maximum Steering Possibilities
The iXtrack T6 offers maximum user friendliness and comfort by having a steering axle which contributes to excellent stability in different field conditions. The track width can be changed from 1.80m to 2.25 metres. This ensures maximum steering possibilities with a tight turning radius.

Smooth and Suspended
The iXtrack T series is equipped with a smooth, suspended parallogram that is active when in the field and in transport. The parallelogram combines optimal stability with soft boom balancing and limited vertical movement to minimise spray height deviations, securing correct crop coverage.

ErgoDrive Headland Management System
ErgoDrive headland management is standard equipment for the iXtrack T6. ErgoDrive assists the operator on the headland turns. It is activated by simply switching ON or OFF and ErgoDrive controls all the necessary actions, while the operator can focus on driving safely.

iXclean
ENFO priming and rinsing is standard on all Kverneland spray computers. Before spraying starts the spray lines are filled with chemicals exactly up to the nozzle by automatic shut off. After finishing or interruption, crop protection agents are automatically flushed out of the spray lines with a minimum of clean water consumption. This ENFO technology optimizes filling and cleaning of the spray lines. Accurate application, no waste of products and saving water are the benefit for the environment.

iXclean Comfort
iXclean Comfort is a semi-automatic valve control system. The combination of an electrical level indicator and suction valve provides operator comfort and accuracy; automatic filling stops when the programmed level is reached, and remote control of all ENFO rinising and priming functions are carried out from the cab! Simple prime the spray lines before you start and rinse them afterwards.

iXclean Pro
iXclean Pro is an advanced solution with fully automatic, electric valve management. It means all functions can be controlled from the cab. Switching between filling, agitation, spraying, diluting, priming, rinsing and tank cleaning, is extremely easy: just push the button! In addition iXclean Pro offers also a fully automatic multi-step rinsing and cleaning program with triple dilution for the entire sprayer. Pushing one button a comprehensive cleaning process including all lines will start. It is so thorough, that residue levels after automated cleaning are below 1%.

iXflow-E
iXflow-E is the high pressure recirculation system with electric nozzle control. There is a free circulation of chemicals with a return of spray liquid back to the tank as spraying stops. This means there is no sedimentation in the spray lines and no dead ends for spraying or cleaning, even when the boom is in vertical position. During spraying each section gets under pressure from both ends of the spray lines, so the operator can immediately start spraying without any pressure drop. It is easy for the operator to program the number and size of sections which fits the best to their requirements and field situations.

The HSS spray boom combines a minimum of weight with maximum strength and stability. Special hardened Domex steel gives the spray boom a long lasting heavy duty high quality reputation. The aluminium bonding instead of welding of the HSA spray boom range provides a weight saving and gives remarkable strength.

HSS Spray Boom
The HSS spray boom is designed for professional use. The triangular construction provides perfect integration of the stainless steel spray lines, nozzles and nozzle holders and the optimal hose routing where all is well protected. Working widths from 18 up to 40 metres with a variation in different section lengths offer the sprayer adapted to customer demands!

HSA Spray Boom
The HSA spray boom offers efficient protection of the nozzle holders within the bottom profile. This profile is designed for easy cleaning and much more. With no sharp angles, no liquid and residues can be trapped. The anodised surface protects against corrosion and scratches.

Compact and Stable
In transport position the HSA and HSS spray boom fold away nicely over the patented tank design and far away from the tractor cab. This results in a transport width of 2.55m and a height below 4m that together with the low gravity point provides excellent stability on the road, as well in the field.

Boom Guide
Boom guide is an automatic boom height control system that helps the operator to maintain your chosen spraying height. Ultrasonic sensors control the sprayer's hydraulics to guide the boom.

Sensors with Hybrid Mode as standard
This unique sensor technology, provides excellent guidance in many different and challenging field conditions and crops. The hybrid mode not only measures the distance to the plant (upper growth), it also measures the distance to the ground or bottom parts of growth at the same time. There are three different modes:

• Soil mode: the sensors only see the bottom. The soil remains representative.
• Crop mode: the sensors only see the crop. In a closed crop the sensors continue to automatically follow the crop (top).
• Hybrid mode: the sensors see the crop and the soil. The sensors follow the soil surface and the crop. When the crop is uneven, a uniform crop is virtually determined. Used in unclosed or uneven crops.

The advantage is a perfect boom guidance at higher speed and a total respect of the optimal nozzle distance to the crop, which result in highest efficiency of the application and reducing drift to a minimum level.

Boom Guide ComfortActive
The two ultrasonic sensors, with integrated roll sensors on the boom, can control the spray height via the central slope correction and boom lift functions. A proportional hydraulic valve is steering the central, hydraulic slope correction cylinder. The cost-effective system is suited to gentle slopes, uneven crop conditions and lower driving speeds.

Boom Guide Pro
This advanced system uses three ultrasonic sensors to control left- an right-hand boom sections independently for the ultimatic guidance in the most challenging field conditions. It can deliver positive and negative lateral movement on each side of the boom to follow the contours in every situation!

Boom Guide ProActive
The system proactively reacts on boom movement and controls both the central and independent slope correction, as well as boom lift functions to guide the boom over the crop canopy, soil surface or a combination of both modes.

Boom Guide 5 Sensor Extension
The Boom Guide 5 sensor extension provides two additional ultrasonic sensors to ensure proper height measurements with booms reduced to 24 metres.

Balancing in Flatland Conditions
An especially designed balancing system for flatland conditions is available for HSS spray booms from 32-40 metres. This system does not require any electronic boom guidance in flatland areas. The advantage is a perfect boom guidance at higher speed and a total respect of the optimal nozzle distance to the crop, which result in highest efficiency of the application and reducing drift to a minimum level.

Storage Locker
A storage locker is integrated on the left hand side behind the door allowing you to keep your safety and cleaning equipment or tools with you on the sprayer. An additional storage locker is available for the right hand side to create even more storage place.

Easy Accessible Filters
The transparant filter bowl provides direct view on the dirt degree of the suction filter without dismounting. A valve at the bottom allows emptying the filter content before removing the bowl to avoid contamination of the hands with chemicals. The self cleaning pressure filter prevents blocking via a continuous flow keeping the filter mesh clean. The undissolved particles are returned into the tank until they are completely dispersed.

Chemical Inductor
The chemical inductor is an integrated part of the tank design. It is located next to the valve panel for easy access. Equipped with a circular rinsing system and waterproof cover, it can be rinsed safely with closed cover. Big quantities of powder and difficult mixtures are injected without any problems within seconds!

Clean Water Tank
The clean water tank is equipped with a level indicator. It can be filled via the opening on the clean water tank. It contains sufficient clean water for thorough cleaning with the several iXclean functions.

Filling via the Suction hose
External aspirate water is filtered first by the filter on the hose and then by the suction filter. In parallel you can already use the chemical inductor to add and premix chemicals.

Hand Wash Tap
You can wash your hands via the hand wash tap which is centrally located on the valve panel.

External Washing
A cleaning kit with a 15 metre hose and a brush, can be connected to the pressure side of the pump. It is allowing precleaning of the sprayer in the field, using water from the clean water tank.

Dual Agitation System
The return flow agitation system keeps the mixture homogeneous during operation and can be easily switched off in case of foam risk or nearly empty tank. The powerful high pressure agitation with injector nozzles guarantees powerful mixing which can activate after filling or a long break.

The iXtrack T series are 100% ISOBUS compatible as standard, which means easy plug and play with the IsoMatch Tellus GO+ or PRO or any other AEF certified terminal. The innovative iXspray hardware and software with intuitive touch interface guarantees an user friendly operation of the sprayer. iXspray is full of nice features to make the operators life easy, save time and avoid mistakes in a busy working season, for example pre-sets for spray jobs and boom configuration can be configured easily.

IsoMatch Grip
The IsoMatch Grip adds control to your fingertips for easy control of the sprayer. From 1 up to 44 functions over 4 modes can be programmed freely by the operator. So you can start with basic functionalities and add other functionalities later on demand. Due to the ISOBUS AUX-N functionality the IsoMatch Grip can also be used to control other implements.

IsoMatch GEOCONTROL
The combination of IsoMatch GEOCONTROL and GPS allows the operator to reduce overlap and over dosing, to increase crop quality and save costs. All this in combination with even high flow rates, because there is no impact on the section length, no loss of pressure or an unequal flow between sections. IsoMatch GEOCONTROL application fulfils the need in terms of easy, smart and efficient farming, by providing the use of automatic section control and variable rate applications.

Only spray when it is needed
Increase the environmental protection by only spray when it is needed with the new SpotSpray application within the iXspray software on the IsoMatch Tellus terminal in combination with the Kverneland sprayer !

Optimal Crop Protection
The SpotSpray application is based on a predefined prescription map with zero application rates. These prescription maps can be made in a similar way as the Variable Rate Application (VRA) prescription maps, in combination the SpotSpray application the sprayer shuts on and off. This is done based on the predefined sections in the control terminal and can even be done with normal section valves on the sprayer. Only designated spots are sprayed, which is particularly helpful when targeting weed spots, thistles, wet areas, non-germinated areas and areas with soil problems.

Another benefit is that based on the area of the spots in the VRA map, it is easy to see exactly how much spray liquid is required in the sprayer. Capacity is also increased as more hectares or fields can be covered with one tank of spray liquid.

With a relatively small investment in the SpotSpray license on the IsoMatch Tellus terminal, the return on investment is high, due to saving time and money. With this, spot spraying becomes accessible for all famers and contractors.

With SpotSpray costs can be saved by reducing the spray liquid to be used and preserve healthy crop from unnecessary treatment. This also means less crop damage.

The complete Kverneland HSS steel spray boom range comes as standard with 50cm nozzle spacing. Additional nozzle holders can be added to the boom now to create 25cm nozzle distance. The 25cm nozzles distance is required by legislation and confirmed as a low drift technology in a limited number of countries.

Improved crop coverage and reduced drift reduction

The 25 cm nozzle distance will improve the crop coverage and drift reduction, as it is possible to spray closer to the target area at 30cm spray height, by keeping an accurate distribution of spray liquid at the correct level with the correct droplet size.

Increase spray window

Easy switching from 50 to 25cm nozzle distance means more flexibility during spraying and it creates more time to spray in optimal conditions. In addition, the weather has less of an effect. It is easy to change from 50 to 25 cm nozzle distance or the other way around. The 25cm nozzle distance is an optional add on, on top of the standard 50cm nozzle distance for all spray line systems (central sections, iXflow-Air and iXflow-E). Even it is possible as retrofit.

With its advanced hardware and software features, the IsoMatch Tellus PRO provides the optimal precision farming solution for an all-in-one control system inside your tractor cab.

IsoMatch Tellus PRO is the centre for connecting all ISOBUS machines and a platform for running precision farming applications. It offers everything a farmer needs to get the maximum out of his machines and crops, as well as cost savings in fertiliser, chemicals and seeds by using automatic section control and variable rate control. With the unique dual screen functionality it gives the farmer the opportunity to view and control two machines and processes simultaneously.

More about the Tellus PRO >

Work easy. Be in control.

IsoMatch Tellus GO+ is especially developed for controlling the machine in a simple way. The farmer is in full control of the machine in exactly the way he wants. Easy set up the machine with the soft keys via the 7-inch touch screen. And, optimal control while driving, just use the hard keys and rotary switch. Controlling the implement has never been so easy.

This can be you your first step into Precision Farming
IsoMatch Tellus GO+ makes it easy to control any ISOBUS machine from your tractor cab. IsoMatch GEOCONTROL enables you to achieve higher yields, lower costs and do your work with less hassle. This licence key is divided in two parts, Section Control and Variable Rate Control, which are available from the IsoMatch Shop. Now you can buy the specific functionality that you need.

More about IsoMatch Tellus GO+ >

With manual guidance you are perfectly on track.

The IsoMatch InLine is a light bar which allows easy manual guidance. It is the perfect assistant to get you as close as possible to your desired A-B line. Mounted in the line of sight, you can easily see the distance from the A-B line and to which direction you should steer for the ideal position. The display of the IsoMatch InLine also displays the status of the machine sections, which adds more comfort of use. The LEDs can be dimmed for night operation.

SMART
Distance to A-B line with LED indication and a numeric display

EFFICIENT
Manual guidance in combination with IsoMatch GEOCONTROL

EASY
Displays status of machine sections

More about IsoMatch InLine >

The essential accessory for IsoMatch GEOCONTROL.

The IsoMatch Global 3 is the GPS antenna, with DGPS accuracy, in the IsoMatch product range. It enables satellite navigation for site-specific section control, variable rate application, manual guidance and field registration.

SMART
Allows manual guidance, automatic section control and variable rate in combination with IsoMatch GEOCONTROL

EFFICIENT
DGPS accuracy without additional subscription fees

EASY
Easy to fit with mounting brackets included

More about IsoMatch Global 3 >

Made for smart, efficient and easy farming

IsoMatch GEOCONTROL is an advanced software application within the IsoMatch Tellus PRO and IsoMatch Tellus GO+ that helps you to control all ISOBUS compatible Kverneland Group machines such as sprayers, spreaders and seeders! Combined with a GPS receiver it fulfils the future needs in terms of easy, smart and efficient farming!

More about IsoMatch GEOCONTROL >

The IsoMatch Grip is an ISOBUS auxiliary device developed for great operator comfort and efficient machine control. Its ergonomic shape and the complete freedom of assigning and controlling a total of 44 implement functions from one device are unique in the market today. From your fingertips you have endless possibilities to operate all machine functions as desired. And assignments are saved per machine making it even more applicable to your needs.

More about IsoMatch Grip >

Whether you are a farmer or contractor with a fleet, IsoMatch FarmCentre gives you a complete overview of your business. You can track the movement of your fleet in real time or verify later where your machines have been operating. Keeping track of multiple machines spread over vast areas has never been so easy! Additionally, all alerts and notifications are sent directly to the IsoMatch FarmCentre web application, and the history of alerts is saved. Allowing dealer to access your account for remote support will decrease the risk of downtime and increase your productivity.

With IsoMatch FarmCentre, machine performance parameters can be tracked and analysed for optimal performance. Actual information about quantity of pressed bales, fertiliser consumption and more is shown in the application. All this you can check remotely from a computer or even a tablet or smartphone.

More about IsoMatch FarmCentre >

Quicker support in finding a fault in Kverneland Group machines

IsoMatch TopService is the new service tool software which replaces the “FlashCan” software. The tool includes significant improvements of user interface and functionality in addition to new advanced features.

More about IsoMatch TopService GO >

Connect to a local wireless network on your IsoMatch Tellus.

IsoMatch Wireless (USB-stick) is complementary to the IsoMatch Tellus and makes it easy to connect to a local wireless network, such as your phone’s hot-spot, home network etc.
No additional costs of an internet service provider. When connected via the IsoMatch Wireless you can browse the internet, view the weather, Gmail, Google, etc.

The IsoMatch Eye is the camera option in the IsoMatch product range.

IsoMatch Eye is a camera that has been developed for use with our sophisticated IsoMatch Tellus GO+ and IsoMatch Tellus PRO dual screen terminal. The IsoMatch Eye is switchable from rear view to standard view.
It gives you full control and overview of entire machine operation during day and night, because of its night vision by integrated LED’s. This increases the safety e.g. when reversing the machine or manoeuvring around obstructions.

SMART
Changeable from rear view to standard view

EFFICIENT
Full control and overview of entire machine operation

EASY
Night vision by integrated LED’s

More about IsoMatch Eye >
