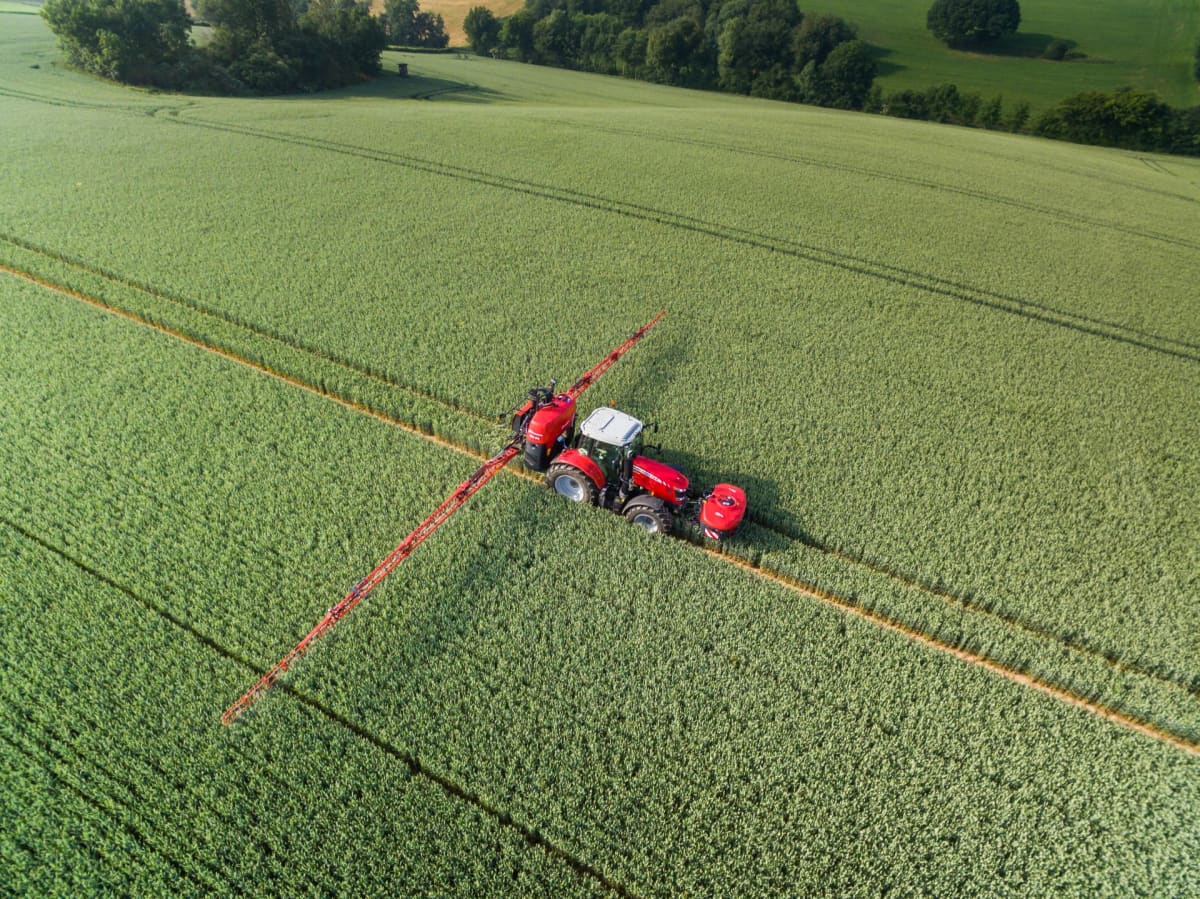

Kverneland iXtra

Diseño totalmente integrado

El iXtra le ofrece un concepto completamente integrado. Los dos depósitos de agua limpia con indicadores de nivel forman parte del diseño, así como el sistema de enganche rápido y el panel de control.

Panel Easy Set de fácil manejo

El panel de válvulas del depósito frontal se utiliza para el vaciado, la agitación y la limpieza. Una bomba eléctrica garantiza la mezcla y la limpieza, independientemente del pulverizador trasero. Puede seleccionar el depósito delantero desde la cabina o a través del panel de válvulas Easy Set del pulverizador iXter B.

Fácil y sencillo sistema de enganche

Sin toma de fuerza delantera ni latiguillos hidráulicos, el enganche del iXtra es extremadamente sencillo: sólo utiliza dos conexiones Camlock y un cable eléctrico, ¡así de simple!

Manejo sencillo

El depósito frontal iXtra utiliza las funciones del pulverizador iXter B para el llenado y la pulverización. Esto evita la necesidad - o el coste adicional - de una tolva de inducción separada o una bomba de pulverización para el depósito frontal. Todos los controles necesarios están convenientemente situados en el pulverizador y se manejan desde el panel de válvulas Easy Set del iXter B.

Indicador eléctrico de nivel

El indicador eléctrico de nivel del depósito delantero proporciona el volumen real del depósito a un ordenador de pulverización, así como a través de la pantalla externa del panel de control Easy Set del pulverizador suspendido iXter B.

iXclean

El sistema ENFO de cebado y enjuague es estándar en todos los equipos de pulverización Kverneland. Antes de iniciar la pulverización, los conductos de pulverización se llenan de productos químicos exactamente hasta la boquilla mediante el cierre automático. Tras la finalización del trabajo, los productos fitosanitarios se enjuagan automáticamente de las líneas de pulverización con un consumo mínimo de agua limpia. Esta tecnología ENFO optimiza el llenado y la limpieza de los conductos de pulverización. La aplicación precisa, el no desperdicio de productos y el ahorro de agua son las ventajas para el medio ambiente.

iXclean Comfort

iXclean Comfort es un sistema semiautomático de control de válvulas. La combinación de un indicador de nivel eléctrico y una válvula eléctrica de aspiración proporciona comodidad y precisión al operador; el llenado automático se detiene cuando se alcanza el nivel programado, y el control remoto de todas las funciones de enjuague y cebado de ENFO se realiza desde la cabina. Simplemente cebe los conductos de pulverización antes de empezar y aclárelos después.

iXclean Pro

iXclean Pro es una solución avanzada con gestión eléctrica de válvulas totalmente automática. Esto significa que todas las funciones se pueden controlar desde la cabina. Cambiar entre llenado, agitación, pulverización, dilución, cebado, aclarado y limpieza del depósito es extremadamente fácil: ¡sólo tiene que pulsar el botón! Además, iXclean Pro ofrece también un programa de limpieza y aclarado multietapa totalmente automático con dilución triple para todo el pulverizador. Pulsando un botón se inicia un proceso de limpieza exhaustivo que incluye todas las líneas. Es tan minucioso que los niveles de residuos tras la limpieza automática son inferiores al 1%.

iXflow-E

iXflow-E es el sistema de recirculación de alta presión con control eléctrico de boquillas. Los productos químicos circulan libremente y el caldo de pulverización vuelve al depósito cuando se detiene la pulverización. Esto significa que no hay sedimentación en los conductos de pulverización ni puntos muertos para la pulverización o la limpieza, incluso cuando la barra está plegada. Durante la pulverización, cada sección de boquillas recibe presión de ambos extremos de los conductos de pulverización, por lo que el operador puede empezar a pulverizar inmediatamente sin ninguna caída o pérdida de presión. El operador puede programar fácilmente el número y el tamaño de las secciones que mejor se adapten a sus necesidades y a la situación del campo.

iXspray

Los pulverizadores suspendidos son 100% compatible con ISOBUS de serie, lo que significa un fácil "plug and play" con el IsoMatch Tellus GO+ o PRO o cualquier otro terminal certificado AEF. El innovador hardware y software iXspray, con una interfaz táctil intuitiva, garantiza un manejo sencillo del pulverizador. iXspray está repleto de funciones que facilitan la vida del operador, ahorran tiempo y evitan errores en una temporada de trabajo ajetreada, por ejemplo, los preajustes para los trabajos de pulverización y la configuración de la barra pueden configurarse fácilmente.

Llenado y mezcla automático de los tanques del iXter B e iXtra
Kverneland TwinFill es una funcionalidad de llenado combinado para el depósito frontal iXtra en combinación con el pulverizador suspendido trasero iXter B.

Siempre la concentración perfecta
TwinFill es un programa de llenado automático que permite al operador llenar su producto de una sola vez, tanto para el depósito delantero como para el trasero, sin el inconveniente del tiempo de mezcla desconocido. El programa se encarga de que el caldo de pulverización se divida y se transfiera al depósito delantero y al trasero con el volumen correcto y la misma concentración. Tras llenar ambos depósitos con agua limpia hasta el nivel requerido, se alcanza la misma concentración en ambos depósitos. TwinFill es especialmente beneficioso para los agricultores de cultivos herbáceos de tamaño medio, los horticultores y los contratistas de zonas de cultivo mixto. El operario puede llenar todos los productos en un solo paso hasta el volumen total necesario de los dos depósitos juntos o simplemente introducir el número de hectáreas que se van a pulverizar, ¡sin tener que medir todos los productos dos veces y en cantidades diferentes y llenar los depósitos por separado! Con TwinFill, el operario puede empezar inmediatamente el trabajo de pulverización, porque la mezcla de ambos depósitos está perfectamente diluida y lista para usar, y también de principio a fin para el trabajo de pulverización completo. Tampoco se desperdicia agua limpia ni caldo de pulverización, porque se calcula exactamente por adelantado cuánta agua o caldo de pulverización se necesita.

Gestión Multitanque
La combinación iXter B-iXtra sigue manteniendo su característica distintiva de tener un uso multidepósito con dos mezclas de pulverización diferentes en el depósito delantero y trasero para aplicaciones distintas o para almacenar agua limpia para usarla más tarde o preparar otra mezcla en otro momento en otro lugar.

• Electrical Level Indicator
  The electrical level indicator on the front tank provides actual tank volume to a spraying computer as well as via the external display on the Easy Set control panel of the iXter B mounted sprayer.

• iXclean Basic
  ENFO priming and rinsing is standard on all Kverneland spray computers. Before spraying starts the spray lines are filled with chemicals exactly up to the nozzle by automatic shut off. After finishing or interruption, crop protection agents are automatically flushed out of the spray lines with a minimum of clean water consumption. This ENFO technology optimizes filling and cleaning of the spray lines. Accurate application, no waste of products and saving water are the benefit for the environment.

• iXclean Comfort
  iXclean Comfort is a semi-automatic valve control system. The combination of an electrical level indicator and suction valve provides operator comfort and accuracy; automatic filling stops when the programmed level is reached, and remote control of all ENFO rinising and priming functions are carried out from the cab! Simple prime the spray lines before you start and rinse them afterwards.

• iXclean Pro
  iXclean Pro is an advanced solution with fully automatic, electric valve management. It means all functions can be controlled from the cab. Switching between filling, agitation, spraying, diluting, priming, rinsing and tank cleaning, is extremely easy: just push the button! In addition iXclean Pro offers also a fully automatic multi-step rinsing and cleaning program with triple dilution for the entire sprayer. Pushing one button a comprehensive cleaning process including all lines will start. It is so thorough, that residue levels after automated cleaning are below 1%.

• iXflow-E
  iXflow-E is the high pressure recirculation system with electric nozzle control. There is a free circulation of chemicals with a return of spray liquid back to the tank as spraying stops. This means there is no sedimentation in the spray lines and no dead ends for spraying or cleaning, even when the boom is in vertical position. During spraying each section gets under pressure from both ends of the spray lines, so the operator can immediately start spraying without any pressure drop. It is easy for the operator to program the number and size of sections which fits the best to their requirements and field situations.

Fully Integrated Design

The iXtra offers you a completely integrated concept. The two clean water tanks with level indicators are part of the design, as well as the quick hitch system and control panel.

Easy Set Control Panel

The valve panel on the front tank is used for draining, agitation and cleaning. An electric pump guarantees mixing and cleaning, independently from the rear sprayer. You can select the front tank from the cab or throught the Easy Set valve panel on the iXter B sprayer.

Easy to Fit, Simple to Unhitch

Without a front PTO shaft or hydraulic hoses, hitching the iXtra is extremely simple: it uses only two hoses with KAMlock connections and an electrical cable - it really is that simple!

Easy Operation

The iXtra front tank uses the functions of the iXter B sprayer when filling and spraying. This avoids the need - or additional cost - for a separate induction hopper or spray pump for the front tank. All the necessary controls are conveniently located on the sprayer and are operated from the Easy Set valve panel on the iXter B.

The Multi-tank-managment strategy with independent filling offers you the possibility to work with two separate spray tanks or cleverly, as one large sprayer with automatic balancing of tank contents. If needed, spray liquid can be transferred in both directions.

The iXtra concept with combined functions gives you more flexibility while spraying:

- One-tank approach: both tanks are filled with spray liquid it boosts overall tank capacity by 60% (automatic level system)

- Two-tank approach: filled with two different tank mixes, the front and rear tanks can be used as two independent spray tanks

- Reservoir approach: filled with clean water or a concentrated product the iXtra front tank can be used as a reservoir for later use, for example in another field or crop.

The Multi-tank-managment strategy with independent filling offers you the possibility to work with two separate spray tanks or cleverly, as one large sprayer with automatic balancing of tank contents. If needed, spray liquid can be transferred in both directions.

The iXtra concept with combined functions gives you more flexibility while spraying:

- One-tank approach: both tanks are filled with spray liquid it boosts overall tank capacity by 60% (automatic level system)

- Two-tank approach: filled with two different tank mixes, the front and rear tanks can be used as two independent spray tanks

- Reservoir approach: filled with clean water or a concentrated product the iXtra front tank can be used as a reservoir for later use, for example in another field or crop.

Fully Integrated Design

The iXtra offers you a completely integrated concept. The two clean water tanks with level indicators are part of the design, as well as the quick hitch system and control panel.

Easy Set Control Panel

The valve panel on the front tank is used for draining, agitation and cleaning. An electric pump guarantees mixing and cleaning, independently from the rear sprayer. You can select the front tank from the cab or throught the Easy Set valve panel on the iXter B sprayer.

Easy to Fit, Simple to Unhitch

Without a front PTO shaft or hydraulic hoses, hitching the iXtra is extremely simple: it uses only two hoses with KAMlock connections and an electrical cable - it really is that simple!

Easy Operation

The iXtra front tank uses the functions of the iXter B sprayer when filling and spraying. This avoids the need - or additional cost - for a separate induction hopper or spray pump for the front tank. All the necessary controls are conveniently located on the sprayer and are operated from the Easy Set valve panel on the iXter B.

• Electrical Level Indicator
  The electrical level indicator on the front tank provides actual tank volume to a spraying computer as well as via the external display on the Easy Set control panel of the iXter B mounted sprayer.

• iXclean Basic
  ENFO priming and rinsing is standard on all Kverneland spray computers. Before spraying starts the spray lines are filled with chemicals exactly up to the nozzle by automatic shut off. After finishing or interruption, crop protection agents are automatically flushed out of the spray lines with a minimum of clean water consumption. This ENFO technology optimizes filling and cleaning of the spray lines. Accurate application, no waste of products and saving water are the benefit for the environment.

• iXclean Comfort
  iXclean Comfort is a semi-automatic valve control system. The combination of an electrical level indicator and suction valve provides operator comfort and accuracy; automatic filling stops when the programmed level is reached, and remote control of all ENFO rinising and priming functions are carried out from the cab! Simple prime the spray lines before you start and rinse them afterwards.

• iXclean Pro
  iXclean Pro is an advanced solution with fully automatic, electric valve management. It means all functions can be controlled from the cab. Switching between filling, agitation, spraying, diluting, priming, rinsing and tank cleaning, is extremely easy: just push the button! In addition iXclean Pro offers also a fully automatic multi-step rinsing and cleaning program with triple dilution for the entire sprayer. Pushing one button a comprehensive cleaning process including all lines will start. It is so thorough, that residue levels after automated cleaning are below 1%.

• iXflow-E
  iXflow-E is the high pressure recirculation system with electric nozzle control. There is a free circulation of chemicals with a return of spray liquid back to the tank as spraying stops. This means there is no sedimentation in the spray lines and no dead ends for spraying or cleaning, even when the boom is in vertical position. During spraying each section gets under pressure from both ends of the spray lines, so the operator can immediately start spraying without any pressure drop. It is easy for the operator to program the number and size of sections which fits the best to their requirements and field situations.
